All stock codes associated to this product
B062, DC111058AP, DC111-058AP
Wind Box DC111
Windows 10 . Do great things.
- Windows 8.1
- The 3nd Gen Intel Mobile ULV Processor
- Compact light weight of only 900 g
- Energy efficient
- Smooth HD playback (Full HD 1080p playback)
- 6 USB ports for many external extensions
- Loss-free connection to a HiFi system via SPDIF-out
- HDMI and VGA outputs for multi-media content on TV
- DT VESA Mount for optional
Windows10
HDMI
Overview

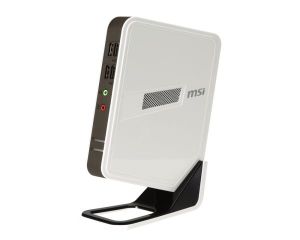

Wind Box DC111
Small, Simple, and Smart. All new energy saving mini PC
MSI has announced the launch of its new-generation Wind Box DC111. The only 35 mm thin Wind Box DC111 shines not only visually, but also low power consumption. With Intel® Celeron® 1037U, powerful graphics and liquid HD playback, it also offers computational power, one would expect at this small size in any way. The mini-PC is the space-saving solution for all computing tasks such as internet, email and office applications as well as TV, music, video and photo playback.
Low Power Consumption Mobile Platform
The Wind Box DC111 is equipped with Intel Mobile 1037U 1.8GHz ULV dual-core processor which provides impressive multi-tasking performance. The 1037U Processor also has the characteristic of low power consumption and requires only 17W TDP to operate, which consumes much less power than the average desktop.
Compact with Windows 8.1
The MSI Wind Box DC111 adopts with Windows 8.1 pre-installed is a totally new version of Windows than ever. Windows 8 breaks the traditional OS architecture of past Windows operating systems; whereas it applies a UI interface which allows users to interact with Windows 8.1 more instinctively and flexible.

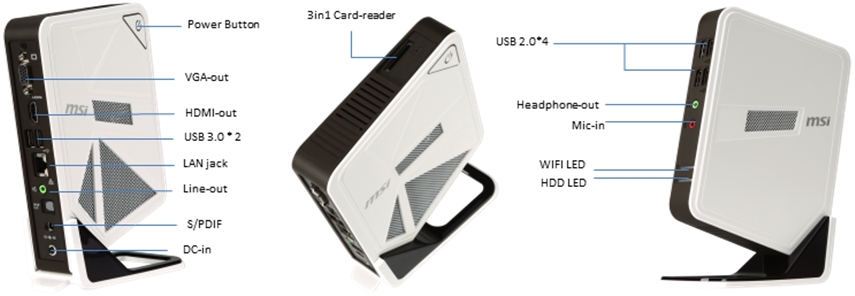

Utilities I/O Ports: The best choice of Home Theater Desktop PC
The Wind Box DC111 provides one an HDMI (High-Definition Multimedia interface) and one VGA out which allows the units to be connected to a second monitor. They support dual-screen display and can also output the screen to a larger display device, such as a projector or a large-screen LCD TV, making the DC111 more versatile and more efficient. DC111 also provide SPDIF out can support 5.1 channel audio. Based on the utilities I/O ports, DC111 has capabilities to be the best choice of Home Theater PC.
Smart- An ultra-lightweight PC
The Wind Box DC111 has elegant lines and a slim, lightweight chassis. It is just 191.8 mm (W) × 150.93 mm (H) × 34.94 mm (D) in size, and weighs only around 900 grams. The DC111’s unique ID design makes it easy to store and move around; this ultra-mini PC is perfect for both home and office use. Tests have confirmed that, in regular operation, the Wind Top DC111 maintains average power consumption that does not exceed 40W, less than half that of most conventional PCs.

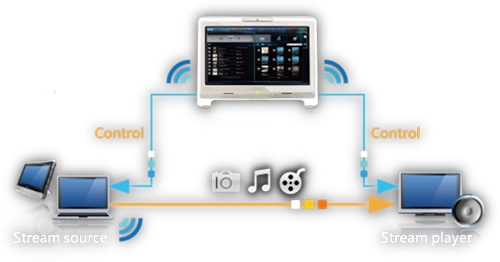

Smart multimedia file sharing
MSI has introduced the latest and exclusively developed SmartMedia link on the Wind Box DC111 using cloud technology, users can use their tablet, laptops, TVs that support DLNA, and mobile handsets on the same Wi-Fi and LAN network to play videos and music or display photos instantaneously via SmartMedia link.
Specifications
OS
Windows 8.1
CPU
Intel® Celeron® 1037U Dual Core Processor (1.80 GHz)
Chipset
Intel® NM70
Memory
4GB DDR3 1333 / 1600 DDR3 SO-DIMM * 1 slots / Max. to 4GB
VGA
Integrate Intel® HD Graphics
Storage
2,5" SATA III 500GB 5400 RPM
Communication
802.11 b/g/n
I/O (Rear)
VGA out / HDMI-out
USB 3.0 x2
LAN jack
Line-out
S/PDIF
I/O (Front)
3 in 1 cardreader (SD, MS, MMC)
USB 2.0 x4
Headphone out / Mic-in
Power Supply
40W
Dimension
191.8 X 150.93 X 34.94mm
Weight
900g
